SMP Male Female Straight Right Angle Board to Board Blind-mate RF Coaxial Cable Connector for 2# Semi-flexible/rigid Cable

FOB Reference Price:Get Latest Price
$5.00 - $15.00 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
ELT (Elite)
Model Number:
2# Semi-flexible/rigid Cable
Type:
SMP
Application:
RF, aerospace , interconnect,broadband,instruments,telecommunications
Gender:
Male,Female
Plating:
Gold plated
Material:
Brass
Characteristic Impedance:
50Ω
Insulator:
PTFE
Connector type:
Cable Connectors
Connector:
SMP Connector
Cable Length:
1M/2M/3M or Custom
Coupling:
Blind mate
Certificate:
CE ROHS
Supply Ability
Supply Ability:
30000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
SMP RF Coaxial Cable Connector for 2# Semi-flexible/rigid Cable
* Standard Export Carton
* According to customers' requirements
Port
Shanghai/Qingdao/Tianjin/other Main Port of China
Video Description
Product Description
SMP RF Coaxial Cable Connector for 2# Semi-flexible/rigid Cable

SMP is a subminiature push-on(snap coupling) RF coaxial connector,which has the characters of small volume,light weight,excellent seismic performance,and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz),and the plug has three interface form-full detent, limited detent and smooth bore(including with braking).PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density.Apply for the install situation with the requirement of high reliability modular intensive.Typical applications include third generation Telecommunication systems such as GSM, WCDMA & UMTS.

Features and Benefits
- DC to 40 GHz
- Subminiature
- Push-on or snap coupling
- Compact size
- Cable mount versions for both flexible and semi-rigid cable Materials
- PCB & cable mount connectors
- Gold plated
- Higher frequency range

Application:
*Aerospace
*Board-to-board interconnect
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications


Gold offers the following main advantages:
-- Excellent wettability/solderability
-- Excellent protection against corrosion
-- Low contact resistance
-- Good wear resistance

Electrical Characteristics
Impedance
50 Ohm
Frequency Range
DC~40GHz
Rated Voltage
170 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
500 VRMS (Maximum sea-level)
Insulation Resistance
>=2000MOhm

Contact Resistance
Outer conductor
<=2.5mOhm
Center conductor
<=6mOhm

VSMR
DC~18GHz
18~26.5GHz
26.5~40GHz
Straight connector
<=1.25
<=1.3
<=1.5
Right angle connector
<=1.3
Material & Mechanical Characteristics

Center Conductor
Male
Sn-P bronze
Gold plated
Female
beryllium bronze
Gold plated
Contact
Beryllium bronze
Gold plated
Shell and other Metal Parts
Brass,stainless steel
Gold plated Passivation
Insulators
Glass sintering/PTFE/PEI
Detailed Images

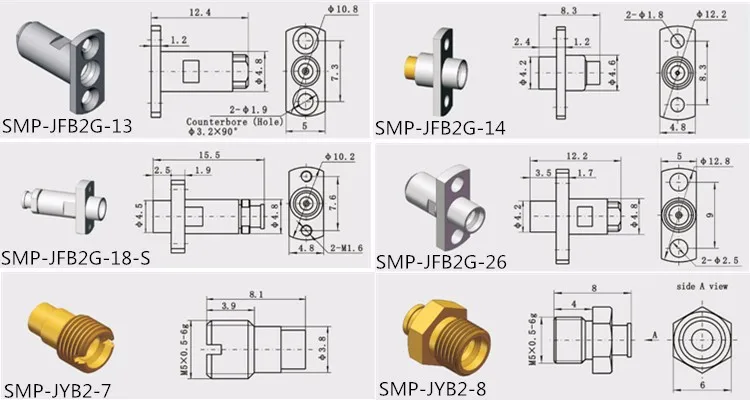

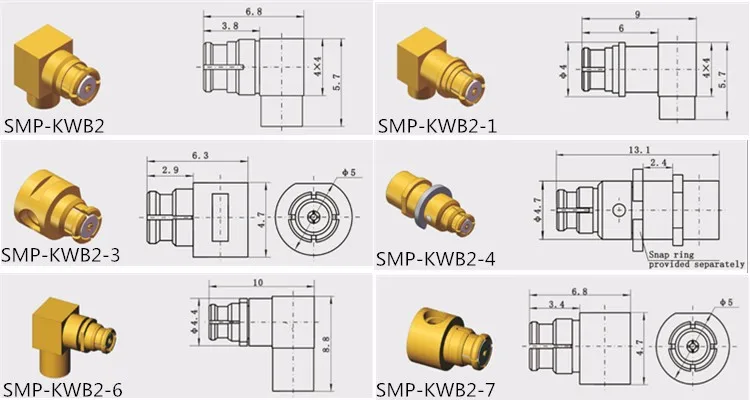

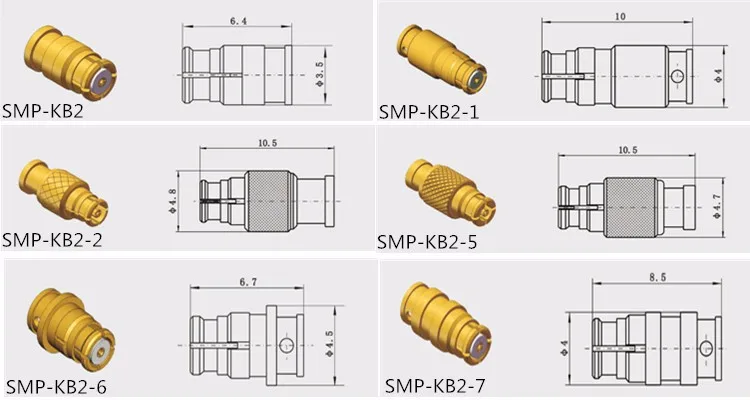

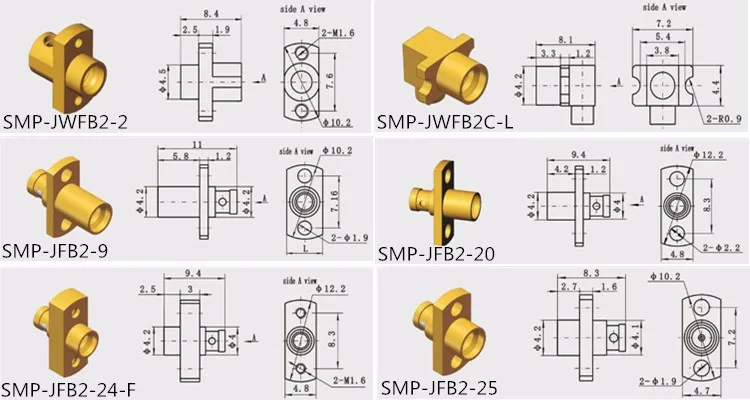

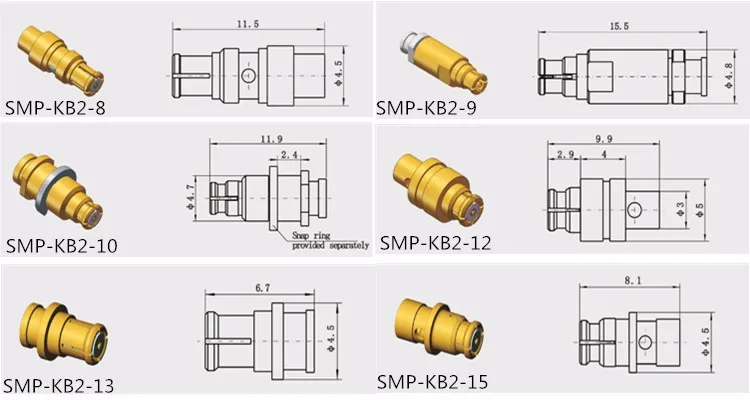

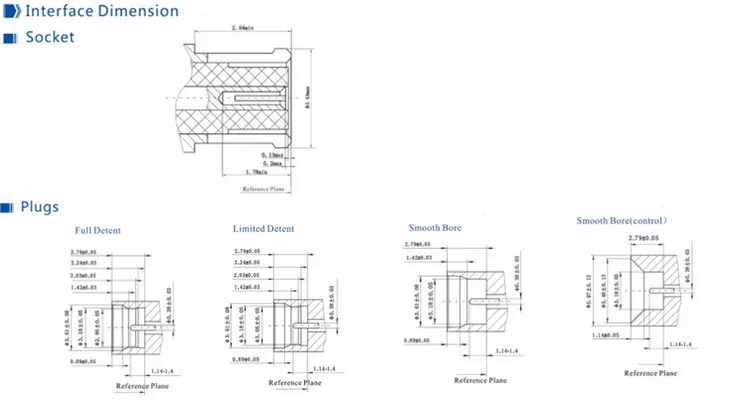

Drawing of SMP RF Cable Connector for 2# Semi-flexible/rigid Cable

Below drawings are part of our products,please contact us for more drawings,and ODM is welcomed!


CUSTOM SOLUTIONS

In addition to our standard offering, Elite Electronic also offers a variety of customized options for these interconnect products, which include different connector options,higher and lower frequency coverage, extended environmental testing, etc. Our team of dedicated Engineers can help develop the right solution for your application needs.
