Glass to Metal Hermetic Seals RF DC Feedthroughs Multi-pin Headers Connector for Electronics Packages

FOB Reference Price:Get Latest Price
$2.00 - $45.00 / Pieces | 200 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 200000 >200000
Est. Time(days) 30 Negotiable
Customization:
Custom design (Min. Order: 200 Pieces)
Samples - $40.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
ELT(Elite)
Model Number:
ELT-Feedthroughs
Type:
Hermetic Sealing Connector
Application:
RF,Power, military, avionics, aerospace and automotive applications.
Gender:
Male
Product name:
RF Hermetic Seal Connector
Shell and Pin Material:
Kovar 4J29
Color:
Gold
Withstand Voltage:
≥300V
Insulation Resistance:
≥1000MΩ
VSWR:
≤1.2
Operating temperature:
-65℃~+260℃
Keywords:
RF Hermetic Seal Connector
Leak rate:
<1.01325 X 10E-08 std.cc/s
Supply Ability
Supply Ability:
30000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
* Standard Export Carton
* According to customers' requirements
Port
Shanghai / Qingdao/Tianjin/other Main Port of China
Lead Time :
Quantity(Pieces) 1 - 200000 >200000
Est. Time(days) 30 To be negotiated
Video Description
 Product Information

Glass to Metal Hermetic RF/DC Feedthroughs /Seals /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components. The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.



  Product Name    RF Kovar Hermetic Sealing Connector/Feedthroughs
  Impedance  50Ω RF DC or other
  Type  1-9 pins
  Raws  1 Raw, 2- Raw, 3- Raw
  Color  Gold plated
  Housing and pin material   Kovar 4J29
  Glass material  7052 or 7070 type or DM308
  Glass Color  Green or White
  Freqecncy Range  DC~50 GHz
  VSWR  ≤1.2
  Withstand Voltage  ≥300V
  Hermecity  <1.01325 X 10E-08 std.cc/s
  Insulation Resistance  ≥2000MΩ for single pin, ≥1000MΩ for multi-pin
  Operating temperature  -65℃~+260℃
PRODUCT DISPLAY

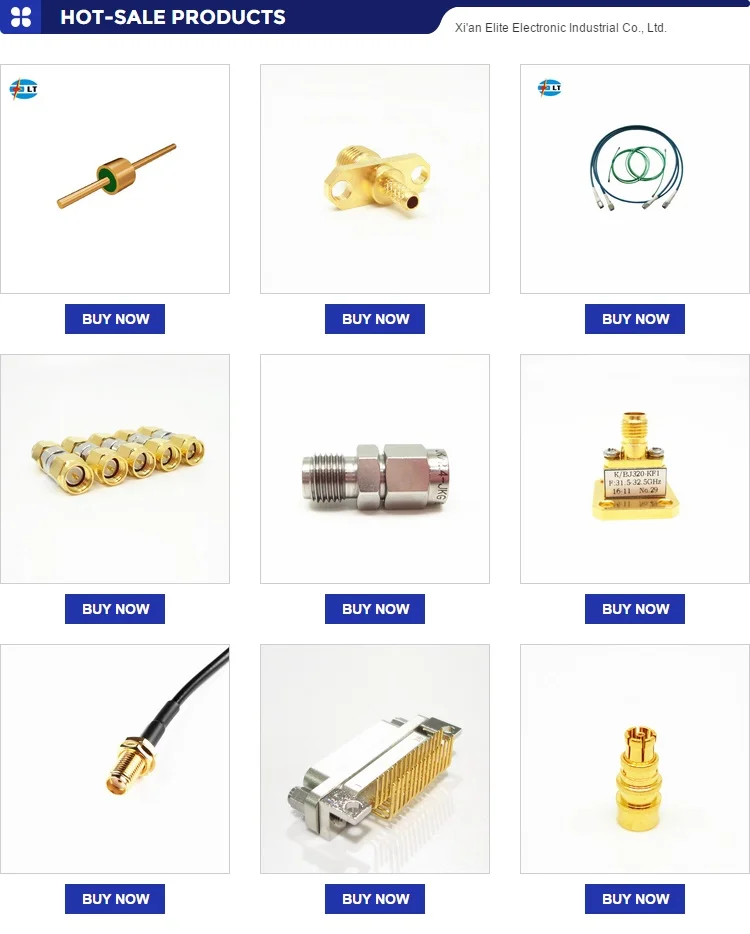

HOT-SALE PRODUCTS

Single Pin Glass-to-metal Hermetic Seals DC Feedthroughs Factory Price ConnectorSingle Pin Glass-to-metal Hermetic Seals DC Feedthroughs Factory Price ConnectorGold Plated 2 Holes Flanges Mount SMA Male Plug Straight RF ConnectorGold Plated 2 Holes Flanges Mount SMA Male Plug Straight RF ConnectorMillimeter Wave 2.4mm 3.5mm Series RF Cable AssemblyMillimeter Wave 2.4mm 3.5mm Series RF Cable AssemblySMA Straight Male to Male RF Coaxial Connector AdapterSMA Straight Male to Male RF Coaxial Connector AdapterNickel Plated Straight 2.92mm(K) Male to 2.4mm Female Millimeter Wave MMW Adapter ConnectorNickel Plated Straight 2.92mm(K) Male to 2.4mm Female Millimeter Wave MMW Adapter ConnectorWR22/28/34/42 K Male Female Waveguide to Coaxial Adapter 2.92mmWR22/28/34/42 K Male Female Waveguide to Coaxial Adapter 2.92mmAntenna Connector RP SMA Female Connector to U.FL 1.13mm CablesAntenna Connector RP SMA Female Connector to U.FL 1.13mm CablesJ30J Series 31 Pin Micro-D Right Angle 90 Degree Miniaturized Rectangular Communication Cables ConnectorJ30J Series 31 Pin Micro-D Right Angle 90 Degree Miniaturized Rectangular Communication Cables ConnectorMini SMP Straight Female Socket Solder RF Coaxial Cable ConnectorMini SMP Straight Female Socket Solder RF Coaxial Cable Connector

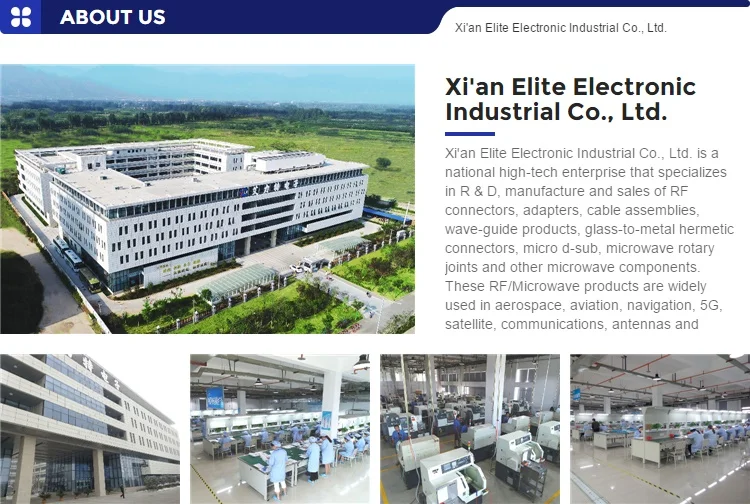

ABOUT US
